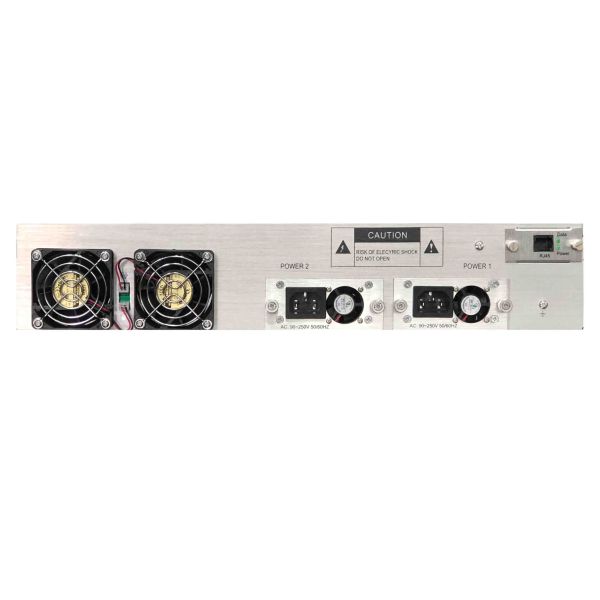

Multi Outputs High Power Optical Amplifier For Network Transmission

  • 1
  • 2
  • 3

Brand Name : HUANSHUN

Model Number : YGF1504XX-C

Certification : China Radio and Television access Card

Place of Origin : CHINA

MOQ : Negotiation

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram/Paypal

Supply Ability : 500 sets per month

Delivery Time : Negotiable

Packaging Details : safety packing

Name : High Power 0ptical Amplifier

Optical Working Wavelength : 1535～1565nm

Output Optical Power Stability Gain Flatness : ＜±0.5/＜±0.3dB

Optical Input and Output Reflection Loss : ＞45 SC/APC (Stepped End-Face)dB

CNR/CTB/CSO : ≥48/≥63/≥63（Notes 1）dB

Box Size : Indoor EYDFA 2U: 88×482.6×387mm

Contact Now

Multi Outputs High Power Optical Amplifier For Network Transmission

High Power Optical Amplifier Features

  1. EXCELLENT QUALITY: Multi-Way High Power Pump Laser, Power is through Optimization & Balance Technology, Minimize the Noise Factor of EYDFA & comparable with general EDFA, which can make the system excellent CNR;
  2. MULTI-OUTPUTS: The Maximum Synthetic Output Power is up to 1.6W~6W, Multi-Ports Output can be matched according to the user demand. Indoor EYDFA structure size are 8×18~23,dBm;
  3. HIGH RELIABILITY: .Indoor EYDFA use a Whole-Aluminum 19" Standard Box, can be directly mounted on the 19" Cabinet.

High Power Optical Amplifier Performance Parameters

Items Units Performance Parameters
Optical Working Wavelength nm 1535～1565

Input Optical Power Range

Nominal Input Optical Power

 dBm -3～+10/+3
MAX/MIN Warning Values dBm +10/+2～-10 front panel optical alarm, ≤-10 shut down
Noise Factor dB ≤5.0 (0 dBm,@1550nm)

Output Optical Power Stability

Gain Flatness

 dB ＜±0.5/＜±0.3

Polarization Sensitivity

Polarization Mode Dispersion

 dB/Ps ＜0.2/＜0.5
Power Supply/Power Voltage V/W Indoor EYDFA: AC165～265 City Electricity or DC-48V/40(Double Power Working)
Working/Storage Temperature ℃ -20～50/-30～70(Relative Temperature 5～90%)
Box Size mm Indoor EYDFA 2U: 88×482.6×387

Network

Management Interface

 / RJ45(Follow the Network Management National Standards, and Support WEB Browser)

Notes:

1.The Optical Link Indexes are measured by Measuring Optical Transmitter and Optical Receiver Combined Testing Results.

2.Above Main Performance Indexes conform to the Technical Requirements and Measurement Methods of GY/T 184-2002 CATV Analog Optical Fiber Amplifier.

Application Design

1550nm CATV Signal DTH(Directly To Home)

10km/-12point-to-point power, 256DTH design to first level optical splitting to second level optical splitting to third level optical splitting third level optical splitting to FTTH
power server room 4 routes 5km 4optical splitting 2.5km 4optical splitting 2km 4optical splitting 0.5km point-to-point power
20.5 7.5 1.25 7.5 0.625 7.5 0.5 7.5 0.125 -12dBm

Description: calculated from the above table can be obtained that 1-route 22dBm [22-20.5-1.5 (Connecting Point Loss or Reserved Power)] optical output signal can be assigned to 256DTH.

High Power Optical Amplifier Order Info.

Product Name Model Functional Description
EYDFA YGF150818 19’’ 1U standard cabinet, -5～+10dBm input, 8ways nominal specification(18, 19, 20, 21, 22, 23, 24dBm)amplifier output, and support down-2dB, safety connection mode, NF≤5dB(when 0dBm); dual-module hot plug power supply, AC90~255V or DC-48V power supply, RJ45 standard network management system(support SNMP, WEB)
YGF150819
YGF150820
YGF150821
YGF150822
YGF150823
YGF150824
Optical Switch Optional model no. suffix+K pick one of two by optical path selection, optical switching loss ≤1dB, switching response ≤30ms
